Midi translator Pro Notes from Channel 1 to 2,3,4....

I want to try use it with a Korg Studio in sequencer.But On Triton ,if I`m on CH 1,only CH1 receive midi notes. I need to play this notes in same time on CH 2,3,4 too . I see there Note on on Ch 1,any note...but on MIDI OUT, I found only a specific note,not any note to make something like "any note from CH1 go to any note on CH2",and note off the same...Any help please ? Thanks . Edit : Expression pedal same...need on all 3  tracks

Hi,

Incoming tab >

• Tick any note as you did
• But also tick set variable to note pp

Outgoing tab >

• note: pp

Thus you’ll find the same note in the incoming tab, AND the outgoing tab (they will be passed throug the variable pp).

Now you need to do a translator 1 that :

Take all incoming notes from channel 1 and bring them to channel 1

Then you need to duplicate that translator 3 times, and for each new translators you have to set outgoing channel to 2, 3 and 4

Then you copy/paste your 4 translators and you deal with the notes off messages.

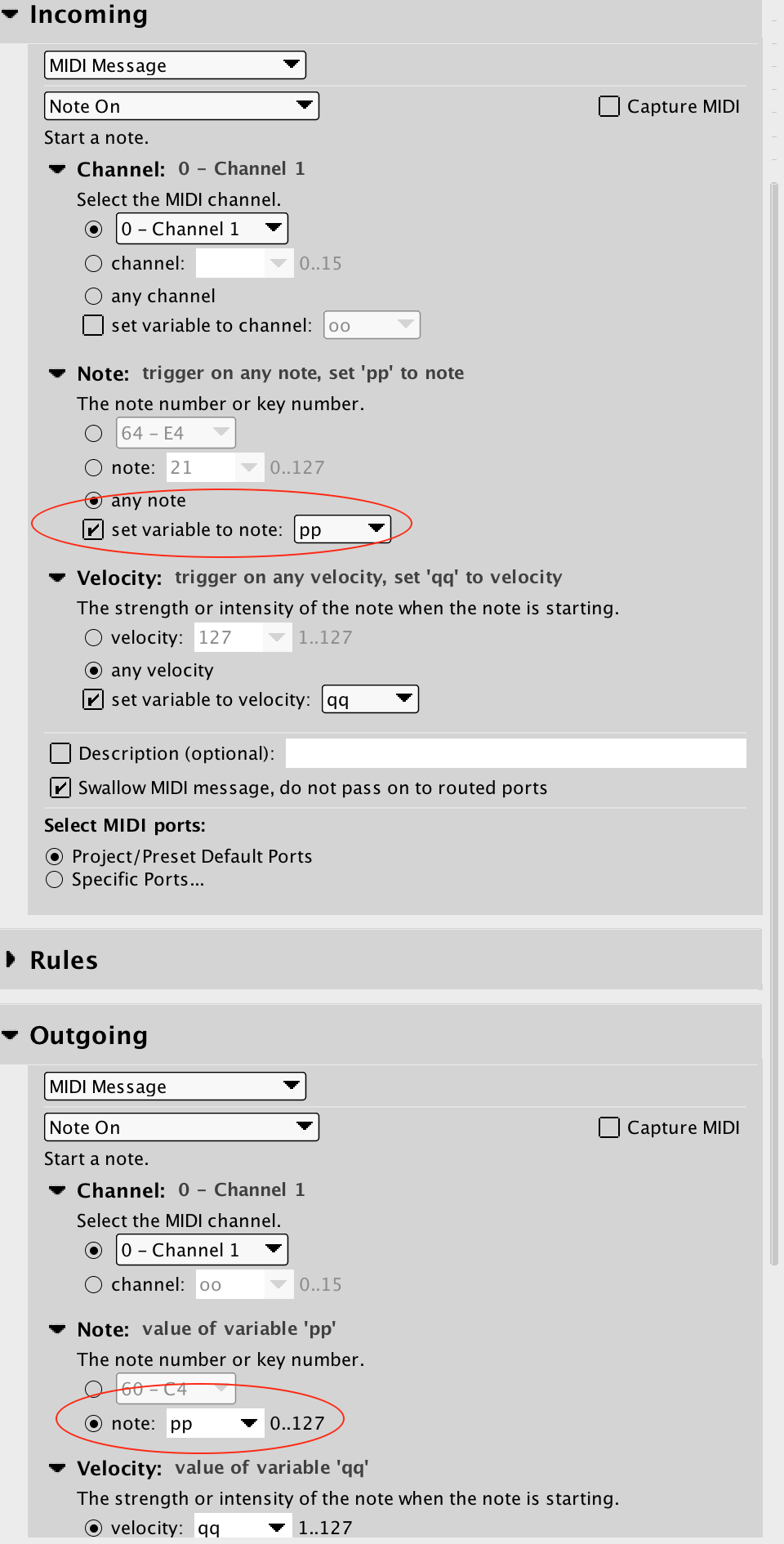

Here is a screenshot. Note I also pass the variable for the velocity.



If this works for you, then you can deal afterwards with the sustain pedal. You’ll have to create 4 new translators that take the sustain pedal from channel 1 and distribute it to the channel 1, 2, 3 & 4.

Just this time the midi message will be Control Change 64 (you also have to pass the value in a variable).

It seems a lot of work at first, but once you understand it, it can go very fast.

Good job in answering @natanael.cognac !



The following Youtube Tutorial may also help

Tutorial: Dynamically Switching MIDI Channel using Bome MIDI Translator Pro

Tutorial: Dynamic Channel Selection with raw MIDI using Bome MIDI Translator Pro

Tutorial: Change MIDI Channel using Bome MIDI Translator Pro

A full list of tutorials for MT Pro can be found here

Steve Caldwell
Bome Q and A Moderator and
Independent Bome Consultant/Specialist
bome@sniz.biz



Thank you very very much !!! Works perfect ! This software is brilliant,and you guys .
